Stefan Strauf’s Research Brings Virtually Unhackable Free-Space Quantum Communication One Step Closer to Reality

Free-space quantum communication uses particles of light called photons to transfer data through the Earth’s atmosphere and nearby space. Still in its infancy, this technology holds the potential to transmit sensitive information — from bank transactions to critical infrastructure operations — far more securely than is possible through current classical communication methods. Rather than relying on man-made algorithms, quantum communications use the fundamental principles of quantum mechanics (how matter and energy behave at the atomic and subatomic levels) to encode transmissions that are virtually impossible to secretly intercept or crack.

Creating reliable sources of photons to enable these communications, however, has proven difficult.

"If you want quantum communication at the free-space wavelengths where the atmosphere is more transparent and less absorbing, then we need a special quantum light source," explained Stevens Institute of Technology Department of Physics Professor and Associate Department Chair Stefan Strauf. "We basically have a lack of quantum light sources that emit light there."

But Strauf’s paper published in the March 4 issue of ACS Nano, "Brightening of Optical Forbidden Interlayer Quantum Emitters in WSe2 Homobilayers," brings this technology one step closer to reality.

Building off his earlier breakthrough developing the first scalable platform for on-chip quantum light sources, Strauf and his team combined quantum materials science with unique manipulation techniques to invent a novel method for creating bright quantum light emissions that reach the infrared wavelengths necessary to enable free-space quantum communications.

"This work allows us to shift the wavelengths consistently and robustly from the visible spectrum to the free-space telecommunication window, filling a niche with our light source that could be useful in satellite quantum communication," Strauf said.

Good stress

A continuing collaboration with Columbia University, Strauf’s research expands upon his original discovery published in Nature Nanotechnology in 2018.

This work found that photons could be emitted on a chip by stretching a single-atom-thin layer of a semiconducting crystalline material (tungsten diselenide) around a gold nanocube — akin to stretching a sheet of cling film around a gaming die at a scale 500 times smaller than the width of a human hair. Positioned five nanometers above a gold mirror, the nanocube imprints quantum emitters onto the chip where the crystals strain against the cube’s corners, firing off photons one at a time. The cube and mirror funnel the photons into the tiny gap between them, concentrating their energy into a stream of photons that can be emitted quickly at a defined location.

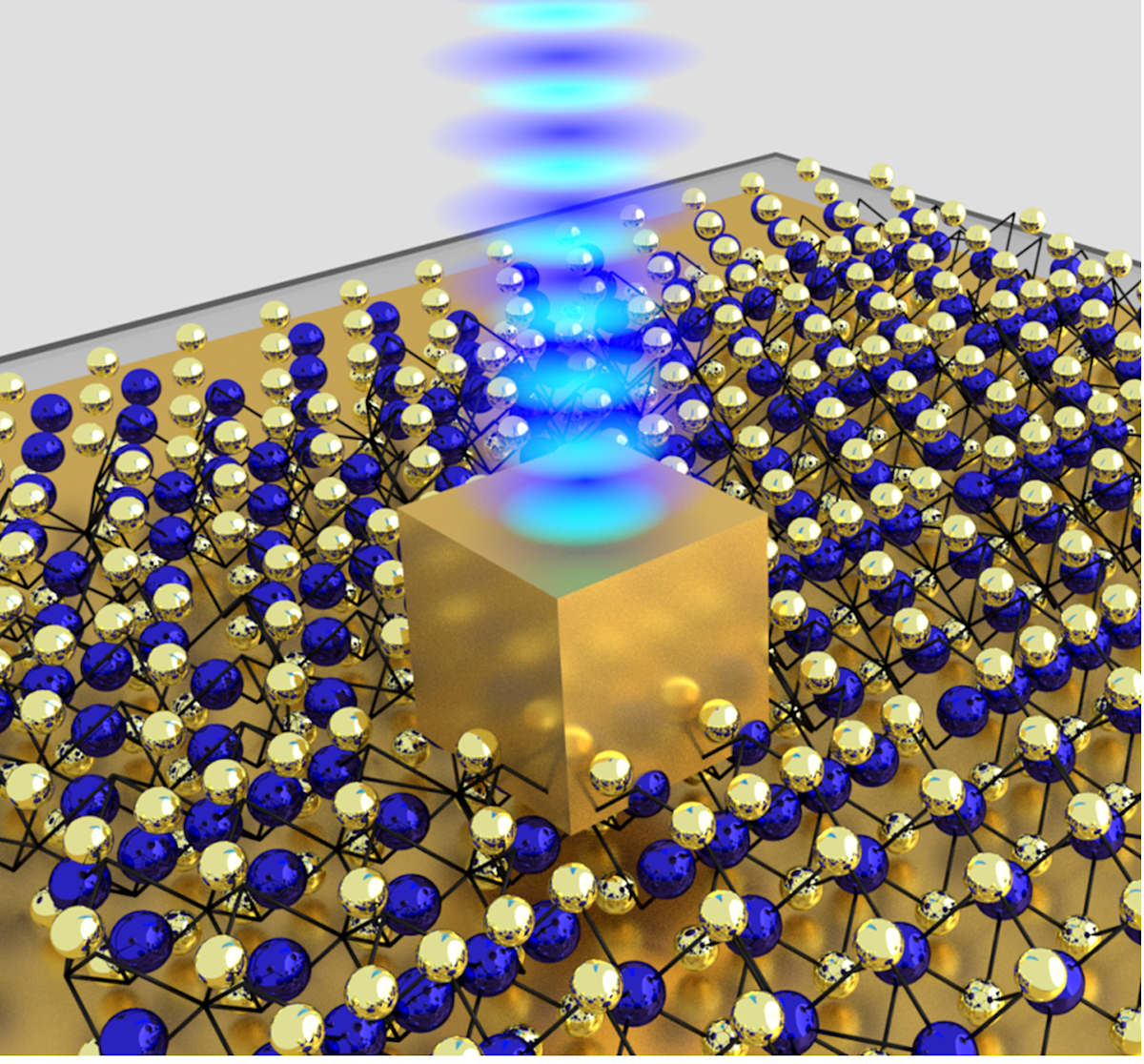

A single gold nanocube sits on top of an atom-thin material made of unique semiconductor crystals. The 5 nm gap is created between the bottom side of the gold nanocube and the gold mirror below it, concentrating enough energy to create a stream of photons.

Strauf’s discovery improved the average rate of photons created from one in 100 triggers to an astonishing one in two, making it the first practical, scalable method for generating quantum light sources on demand.

Doubling up

The more strain applied to the crystalline material, the more photons are emitted per second, and the brighter the light becomes. More strain also creates longer light wavelengths, shifting them closer to the range needed for free-space communication.

But the amount of strain necessary to reach these wavelengths is too much for a single layer of tungsten diselenide to withstand.

"When you reach wavelengths of about 750, the material breaks. The nanocube’s corners pierce through and punch a hole, and then there's no light," Strauf explained.

To solve the problem, Strauf, who is also director of the Nanophotonics Lab, turned to a practical solution: stacking a second layer of material on top of the first. By doing so, the researchers were able to increase strain on the crystal to shift emission wavelengths by more than 100 nanometers to 810 nanometers, ultimately achieving the desired infrared range.

Brightening darkness

Unfortunately two layers of tungsten diselenide render the material “momentum forbidden”: electron-hole pairs inside the material that emit photons are not capable of creating light efficiently. While doubling the material’s layers allowed Strauf to achieve the desired wavelengths, the brightness of the light produced left much to be desired.

"Very little light comes out. It's gray and useless for application," Strauf said.

To address the problem, the team took a two-pronged approach, applying local strain to the crystal bilayer while simultaneously harnessing those plasmonic nanocavities between the nanocube and mirror.

"It’s such a tiny gap that we squeeze all the electromagnetic energy to a scale that is 100 times shorter than the wavelengths of light itself," Strauf explained. "It’s so concentrated, we get hundreds of times of enhancement of the optical emission, and the single photon source becomes really bright."

The end result: a photon emission rate of up to 1.45 million per second, creating quantum light 10 times brighter than before at this desired wavelength.

Additionally, the researchers discovered they could control the direction of the light emitted by how they bent the crystal material. They also developed a novel measurement technique for determining the three-dimensional orientation of the light emissions.

Benefits on and off the bench

Stevens is one of only a handful of universities worldwide offering a Master’s program in quantum engineering, which provides hands-on experience in quantum optics and quantum communications. The benefits of research in these burgeoning fields, noted Strauf, apply not only to society, but also to the students working in them.

Physics Professor Stefan Strauf’s latest research creating quantum light sources for use in free-space quantum communications was published in the March 4 issue of high-impact journal ACS Nano.

Seven of the paper’s nine authors are current or former graduate students of Stevens’ Department of Physics, two of whom — Na Liu and Licheng Xiao — share first-authorship. Xiao is scheduled to defend his dissertation this summer, while Liu now works at the U.S. Department of Energy’s Los Alamos National Laboratory. Another former Ph.D. student, Yue Luo, went on to conduct postdoctoral research at Harvard University and now runs his own research group as a professor at Southeast University in China.

"There’s a lot of interest in quantum science worldwide, and my colleagues and I are doing really interesting things in our labs at Stevens. Quantum Computing Inc. currently employs five of my former Ph.D. students," said Strauf. "This research shows that our physics graduates are very accomplished and can become successful, have good employment and earn competitive salaries."

Quantum Computing Inc., now headquartered in Hoboken, New Jersey where Stevens is located, acquired Stevens-based quantum startup QPhoton in 2022.
